£135Approximately $178 (USD)
320 in stock

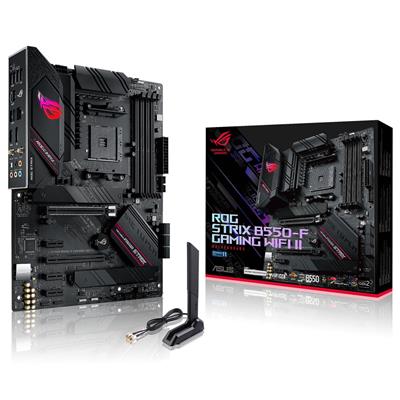

ASUS ROG STRIX B550-F GAMING WI-FI II (Socket AM4/B550/DDR4/S-ATA 600/ATX)
SKU: 122414
ASUS ROG STRIX B550-F GAMING WI-FI II (Socket AM4/B550/DDR4/S-ATA 600/ATX)
Features:
| Web Address | http://www.asus.com |
|---|---|
| Model Number | ROG STRIX B550-F GAMING WI-FI II |
| EAN | 4711081453314 |
| UPC | 195553453318 |
| Package Type | Retail |
| Warranty | 3 Years |
| BIOS | 256 Mb Flash ROM‚UEFI AMI BIOS |
| Chipset | AMD B550 |
| CPU Interface | Socket AM4 |
| CPU Support | https://rog.asus.com/motherboards/rog-strix/rog-strix-b550-f-gaming-wifi-ii-model/helpdesk_cpu/ |
| RAM Technology | DDR4 (Dual Channel) |
| RAM Slots | 4 x 288-pin |
| RAM Speeds | Up to DDR4 4800 (O.C.) |
| Max. Memory Support | 128GB |
| PCI Express 3.0 x16 | 1 |
| PCI Express 4.0 x16 | 1 |
| PCI Express 3.0 x1 | 3 |
| S-ATA 6Gb/s Port(s) | 6 |
| RAID | Raid 0/1/10 |
| M.2 Socket(s) | 1 x SATA/PCIe 3.0 x4‚1 x SATA/PCIe 4.0 x4 |
| On-Board LAN | 1 x Intel I225-V 2.5Gb Ethernet |
| Wireless NIC | Wi-Fi 6E |
| Wireless Technology | 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) ‚Supports 2.4/5/6GHz frequency band |
| Bluetooth | v5.2 |
| On-Board Audio | ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A |
| On-Board Video | Processor with integrated graphics is required |
| Back USB 2.0 Port(s) | 2 |
| Back USB 3.2 Port(s) Type-A Gen 1 | 4 |
| Back USB 3.2 Port(s) Type-A Gen 2 | 1 |
| Back USB 3.2 Port(s) Type-C Gen 2 | 1 |
| Back HDMI Port(s) | 1 |
| Back DisplayPort(s) | 1 |
| Back LAN Port(s) | 1 |
| Back Audio Jack(s) | 5 |
| Back S/PDIF Output Port(s) | 1 |
| Back Other Port(s) | Wi-Fi Module |
| Back Button(s) | 1 x BIOS FlashBack |
| 24-pin ATX Power | 1 |
| 8-pin ATX Power | 1 |
| 4-pin ATX Power | 1 |
| USB 2.0 Header(s) | 2 |
| USB 3.2 Header(s) Gen 1 | 1 |
| Front Panel Audio Connector | 1 |
| Internal Other Port(s) | 1 x Addressable Gen 2 header‚2 x AURA RGB headers‚1 x Thermal sensor header‚1 x Thunderbolt header |
| Form Factor | Standard ATX |
| Product Width | 244mm |
| Product Length | 305mm |
| Package Width | 27.5cm |
| Package Length | 34cm |
| Package Height | 7cm |
| Gross Weight | 1.77Kg |
| Package Contents | ROG STRIX B550-F GAMING WIFI II motherboard‚1 x Addressable RGB extension cable‚4 x SATA 6Gb/s cables‚1 x ASUS Wi-Fi moving antennas‚1 x Cable ties pack‚1 x M.2 Rubber Package‚1 x M.2 SSD screw package‚1 x ROG key chain‚1 x ROG STRIX stickers‚1 x ROG STRIX thank you card‚Support Disk‚Manual |
| Product Name | ASUS ROG STRIX B550-F GAMING WI-FI II (Socket AM4/B550/DDR4/S-ATA 600/ATX) |
|---|---|
| Web Address | |
| Model Number | ROG STRIX B550-F GAMING WI-FI II |
| EAN | 4711081453314 |
| UPC | 195553453318 |
| Package Type | Retail |
| Warranty | 3 Years |
| BIOS | 256 Mb Flash ROM‚UEFI AMI BIOS |
| Chipset | AMD B550 |
| CPU Interface | Socket AM4 |
| CPU Support | https://rog.asus.com/motherboards/rog-strix/rog-strix-b550-f-gaming-wifi-ii-model/helpdesk_cpu/ |
| RAM Technology | DDR4 (Dual Channel) |
| RAM Slots | 4 x 288-pin |
| RAM Speeds | Up to DDR4 4800 (O.C.) |
| Max. Memory Support | 128GB |
| PCI Express 3.0 x16 | 1 |
| PCI Express 4.0 x16 | 1 |
| PCI Express 3.0 x1 | 3 |
| S-ATA 6Gb/s Port(s) | 6 |
| RAID | Raid 0/1/10 |
| M.2 Socket(s) | 1 x SATA/PCIe 3.0 x4‚1 x SATA/PCIe 4.0 x4 |
| On-Board LAN | 1 x Intel I225-V 2.5Gb Ethernet |
| Wireless NIC | Wi-Fi 6E |
| Wireless Technology | 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) ‚Supports 2.4/5/6GHz frequency band |
| Bluetooth | v5.2 |
| On-Board Audio | ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A |
| On-Board Video | Processor with integrated graphics is required |
| Back USB 2.0 Port(s) | 2 |
| Back USB 3.2 Port(s) Type-A Gen 1 | 4 |
| Back USB 3.2 Port(s) Type-A Gen 2 | 1 |
| Back USB 3.2 Port(s) Type-C Gen 2 | 1 |
| Back HDMI Port(s) | 1 |
| Back DisplayPort(s) | 1 |
| Back LAN Port(s) | 1 |
| Back Audio Jack(s) | 5 |
| Back S/PDIF Output Port(s) | 1 |
| Back Other Port(s) | Wi-Fi Module |
| Back Button(s) | 1 x BIOS FlashBack |
| 24-pin ATX Power | 1 |
| 8-pin ATX Power | 1 |
| 4-pin ATX Power | 1 |
| USB 2.0 Header(s) | 2 |
| USB 3.2 Header(s) Gen 1 | 1 |
| Front Panel Audio Connector | 1 |
| Internal Other Port(s) | 1 x Addressable Gen 2 header‚2 x AURA RGB headers‚1 x Thermal sensor header‚1 x Thunderbolt header |
| Form Factor | Standard ATX |
| Product Width | 244mm |
| Product Length | 305mm |
| Package Width | 27.5cm |
| Package Length | 34cm |
| Package Height | 7cm |
| Gross Weight | 1.77Kg |
| Special Features | AM4 socket: Ready for AMD Ryzen 3000 and 5000 series, plus 5000 and 4000 G-series desktop processors.‚Best gaming connectivity: PCIe 4.0-ready, dual M.2 slots, USB 3.2 Gen 2 Type-C, plus HDMI 2.1 and DisplayPort 1.2 output.‚Smooth networking: On-board WiFi 6E (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard.‚Robust power solution: 12+2 teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors.‚Renowned software: Intuitive dashboards for UEFI BIOS and ASUS AI Networking for easy configuration.‚DIY-friendly design: Includes pre-mounted I/O shield, BIOS FlashBack, Q-LEDs and SafeSlot.‚Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB and addressable Gen 2 RGB headers.‚Industry-leading gaming audio: Two-Way AI Noise Cancelation, SupremeFX S1220A codec, DTS Sound Unbound and Sonic Studio III for immersive sound. |
| Package Contents | ROG STRIX B550-F GAMING WIFI II motherboard‚1 x Addressable RGB extension cable‚4 x SATA 6Gb/s cables‚1 x ASUS Wi-Fi moving antennas‚1 x Cable ties pack‚1 x M.2 Rubber Package‚1 x M.2 SSD screw package‚1 x ROG key chain‚1 x ROG STRIX stickers‚1 x ROG STRIX thank you card‚Support Disk‚Manual |
| Keywords | Motherboard‚AM4‚B550‚DDR4‚WiFi‚Bluetooth |
There are no reviews yet.
