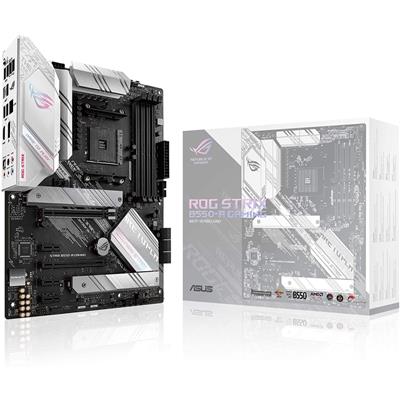

ASUS AM4 ROG STRIX B550-A GAMING

Name: ASUS AM4 ROG STRIX B550-A GAMING
SKU: 119437
Price: 121 GBP
Availability: InStock

£121Approximately $161 (USD)

182 in stock

Sold: 0

Available: 182

ASUS ROG STRIX B550-A GAMING (Socket AM4/B550/DDR4/S-ATA 600/ATX)

SKU: 119437

ASUS ROG STRIX B550-A GAMING (Socket AM4/B550/DDR4/S-ATA 600/ATX)

Features:

AM4 socket: Ready for 3rd Gen AMD Ryzen processors.‚Best gaming connectivity: PCIe 4.0-ready
dual M.2
USB 3.2 Gen 2 Type-C plus HDMI 2.1 and DisplayPort 1.2 output support.‚Smooth networking: Intel 2.5Gb Ethernet with ASUS LANGuard.‚Robust power solution: Teamed power stages with ProCool power connector
high-quality alloy chokes and durable capacitors.‚Renowned software: Intuitive dashboards for UEFI BIOS and ASUS AI Networking make it easy to configure gaming builds.‚DIY-friendly design: Includes pre-mounted I/O shield
BIOS FlashBack
Q-LEDs and SafeSlot.‚Unmatched personalisation: ASUS-exclusive Aura Sync RGB lighting
including Aura RGB header and addressable Gen 2 RGB header.‚Industry-leading gaming audio: AI Noise-Cancelling Microphone
SupremeFX S1220A codec
DTS® Sound Unbound and Sonic Studio III for immersive audio.

Web Address	http://www.asus.com
Model Number	ROG STRIX B550-A GAMING
EAN	4718017826594
UPC	192876826591
Package Type	Retail
Warranty	3 Years
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Chipset	AMD B550
CPU Interface	Socket AM4
CPU Support	https://www.asus.com/uk/Motherboards/ROG-STRIX-B550-A-GAMING/HelpDesk_CPU/
RAM Technology	DDR4 (Dual Channel)
RAM Slots	4 x 288-pin
RAM Speeds	Up to DDR4 5100 (O.C.)
Max. Memory Support	128GB
PCI Express 3.0 x16	1
PCI Express 4.0 x16	1
PCI Express 3.0 x1	3
S-ATA 6Gb/s Port(s)	6
RAID	Raid 0/1/10
M.2 Socket(s)	2
On-Board LAN	Intel I225-V 2.5Gb Ethernet‚ASUS LANGuard
On-Board Audio	ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
Back USB 2.0 Port(s)	2
Back USB 3.2 Port(s) Type-A Gen 1	4
Back USB 3.2 Port(s) Type-A Gen 2	1
Back USB 3.2 Port(s) Type-C Gen 2	1
Back HDMI Port(s)	1
Back DisplayPort(s)	1
Back LAN Port(s)	1
Back Audio Jack(s)	5
Back S/PDIF Output Port(s)	1
Back Button(s)	1 x BIOS FlashBack
24-pin ATX Power	1
8-pin ATX Power	1
4-pin ATX Power	1
USB 2.0 Header(s)	2
USB 3.2 Header(s) Gen 1	1
Thunderbolt Header(s)	1
Front Panel Audio Connector	1
Internal Other Port(s)	2 x Aura RGB Strip Headers‚1 x Addressable Gen 2 Header‚1 x Thermal Sensor Connector
Form Factor	Standard ATX
Product Width	244mm
Product Length	305mm
Package Width	27.5cm
Package Length	34cm
Package Height	7cm
Gross Weight	1.70Kg
Package Contents	Motherboard‚Manual‚4 x SATA 6Gb/s cables‚1 x Supporting DVD‚1 x ROG Strix stickers‚1 x Cable ties pack‚1 x Extension cable for Addressable LED‚1 x ROG Thank you card‚1 x M.2 SSD screw package‚1 x M.2 Rubber Package

Product Name	ASUS ROG STRIX B550-A GAMING (Socket AM4/B550/DDR4/S-ATA 600/ATX)
Web Address	http://www.asus.com
Model Number	ROG STRIX B550-A GAMING
EAN	4718017826594
UPC	192876826591
Package Type	Retail
Warranty	3 Years
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Chipset	AMD B550
CPU Interface	Socket AM4
CPU Support	https://www.asus.com/uk/Motherboards/ROG-STRIX-B550-A-GAMING/HelpDesk_CPU/
RAM Technology	DDR4 (Dual Channel)
RAM Slots	4 x 288-pin
RAM Speeds	Up to DDR4 5100 (O.C.)
Max. Memory Support	128GB
PCI Express 3.0 x16	1
PCI Express 4.0 x16	1
PCI Express 3.0 x1	3
S-ATA 6Gb/s Port(s)	6
RAID	Raid 0/1/10
M.2 Socket(s)	2
On-Board LAN	Intel I225-V 2.5Gb Ethernet‚ASUS LANGuard
On-Board Audio	ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
Back USB 2.0 Port(s)	2
Back USB 3.2 Port(s) Type-A Gen 1	4
Back USB 3.2 Port(s) Type-A Gen 2	1
Back USB 3.2 Port(s) Type-C Gen 2	1
Back HDMI Port(s)	1
Back DisplayPort(s)	1
Back LAN Port(s)	1
Back Audio Jack(s)	5
Back S/PDIF Output Port(s)	1
Back Button(s)	1 x BIOS FlashBack
24-pin ATX Power	1
8-pin ATX Power	1
4-pin ATX Power	1
USB 2.0 Header(s)	2
USB 3.2 Header(s) Gen 1	1
Thunderbolt Header(s)	1
Front Panel Audio Connector	1
Internal Other Port(s)	2 x Aura RGB Strip Headers‚1 x Addressable Gen 2 Header‚1 x Thermal Sensor Connector
Form Factor	Standard ATX
Product Width	244mm
Product Length	305mm
Package Width	27.5cm
Package Length	34cm
Package Height	7cm
Gross Weight	1.70Kg
Special Features	AM4 socket: Ready for 3rd Gen AMD Ryzen processors.‚Best gaming connectivity: PCIe 4.0-ready, dual M.2, USB 3.2 Gen 2 Type-C plus HDMI 2.1 and DisplayPort 1.2 output support.‚Smooth networking: Intel 2.5Gb Ethernet with ASUS LANGuard.‚Robust power solution: Teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors.‚Renowned software: Intuitive dashboards for UEFI BIOS and ASUS AI Networking make it easy to configure gaming builds.‚DIY-friendly design: Includes pre-mounted I/O shield, BIOS FlashBack, Q-LEDs and SafeSlot.‚Unmatched personalisation: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB header and addressable Gen 2 RGB header.‚Industry-leading gaming audio: AI Noise-Cancelling Microphone, SupremeFX S1220A codec, DTS® Sound Unbound and Sonic Studio III for immersive audio.
Package Contents	Motherboard‚Manual‚4 x SATA 6Gb/s cables‚1 x Supporting DVD‚1 x ROG Strix stickers‚1 x Cable ties pack‚1 x Extension cable for Addressable LED‚1 x ROG Thank you card‚1 x M.2 SSD screw package‚1 x M.2 Rubber Package
Keywords	Motherboard‚AM4‚B550‚DDR4‚DisplayPort‚HDMI‚PCIe4‚ATX
